gofanco 4K 4x4 HDMI 2.0 Matrix – Up to 230ft CAT Extension, 4K 60Hz 4:4:4, HDR, HDMI 2.0, HDCP 2.2, Dual IR, PoC, Smart EDID, Auto Downscale, 4 Inputs 4 Outputs, Audio Extraction (Matrix44-HDBT v2)
Black Friday 🔥 gofanco 4K 4x4 HDMI 2.0 Matrix – Up to 230ft CAT Extension, 4K 60Hz 4:4:4, HDR, HDMI 2.0, HDCP 2.2, Dual IR, PoC, Smart EDID, Auto Downscale, 4 Inputs 4 Outputs, Audio Extraction (Matrix44-HDBT v2) Simple review
So you can check out the other reviews at Amazon.com
only with $ 749.99
| Connector Type | HDMI |
| Brand | Gofanco |
| Warranty Type | Manufacturer and Seller Combination |
| Unit Count | 1 Count |
- ✔ 4x4 HDMI MATRIX – Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI outputs. 3 CAT6/7 and 1 HDMI outputs, plus 1 mirrored HDMI output. Extends up to 230ft over CAT6/7. Supports the latest HDMI formats and audio extraction from any output
- ✔ DISPLAY RESOLUTION – Supports up to 4K @60Hz YUV 4:4:4 8-bit, HDR (4K @60Hz 4:2:0 10-bit), HDMI 2.0, HDCP 2.2, 18Gbps
- ✔ CONTROL OPTIONS – Push buttons, IR remote, RS232 command, and Web GUI (TCP/IP)
- ✔ ADVANCED FEATURES – Power over Cable (PoC) allows one power adapter to power both the TX & RX units, bi-directional IR, smart EDID management, and advanced HDCP handling. HDMI outputs support auto-downscaling to display mixed 4K and 1080p outputs from the same 4K source
- ✔ SIMPLE INSTALLATION – No driver required; Surface-mountable metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"
Product Description
HDBaseT 4x4 4K UHD Matrix Extender
gofanco's 4x4 HDBaseT 4K HDMI Matrix can distribute, extend, and switch between any of your 4 source devices to any of the 4 displays connected over CATx ethernet cables.Four out put signals can be displayed simultaneously or independently. Creates three extended display and 1 local display set up.
IMPORTANT NOTES:
- Does not support 4K @60Hz Chroma 4:4:4 or HDR. 4K/60Hz 4:4:4 input devices will be downgraded to 1080p output
- 2x AAA batteries not included, required for IR remote
- All TVs, monitors, projectors, or other screens connected will output in the SAME resolution. The resolution sent will be that of the lowest resolution screen. If 1080p is the lowest resolution, then 1080p will stand for all displays.
- gofanco is an official member of the HDbaseT Alliance!
Specs
- HDMI 1.4, HDCP 2.2
- Video resolutions: Up to 4K @60Hz 4:2:0, 4K @30Hz, and 1080p 3D video
- Switching methods: Front panel buttons, IR remote control, RS232, TCP/IP, and GUI
- HDMI AUDIO - Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
- Smart EDID management to match the connected displays
- Firmware upgradable for expanded compatibility
- Housing: Surface mountable metal enclosure
- Regulatory approvals: FCC, CE, RoHS
Need more inputs and outputs?
Search Matrix88- HDBT or B08RLY1889
OR
Look in below comparison table
HDBaseT HDMI Matrix Extender Switcher
All-In-One Professional AV Solution
The ultimate HDMI control solution acts as a matrix, switch, and extender. Share and extend up to four HDMI video sources over CAT5e/6 cables and switch them between up to four remote displays.
**1 local display and 3 extended displays**
Eliminates the expense and hassle of running multiple devices. No need to continuously switch HDMI cables and/or CAT cables.
Advanced HDBaseT Features
- Power over Cable (PoC) - Allows for one power adapter to power both the TX & RX. Eliminates need to for access to extra outlet at each receiver
- Bi-Directional IR - Allows for control of the source on both TX & RX sides
- Full HD and UHD Video - Transmit full uncompressed HD and 4K Ultra-HD video signals, with near zero latency
- Ethernet - Provides 100mb ethernet capabilities to allow computers, TVs, and other consumer devices to interact with each other
- Audio - Supports all standard audio formats to ensure audio content is delivered at the highest performance level
Dynamic Video Extension to Fit Your Needs
- Connect 4 different HDMI sources to 4 different displays, in different locations around a large building such as a restaurant, house of worship, or resource center.
- Keep your cable box, game console, Blue-Ray player, and Apple TV in one secure, tidy location and be able to view and control them from any room in the house or distant location.
- Remotely switch your display from one video source to another.
Transmission Ranges
- 4K @60Hz (4:2:0) & 4K @30Hz up to 130ft (40m)
- 1080p/3D up to 230ft (70m)
- Local HDMI Output up to 26ft (8m)
- We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH) on Amazon.
Flexible Switch Control Options
Route source signal to displays in a variety of ways!

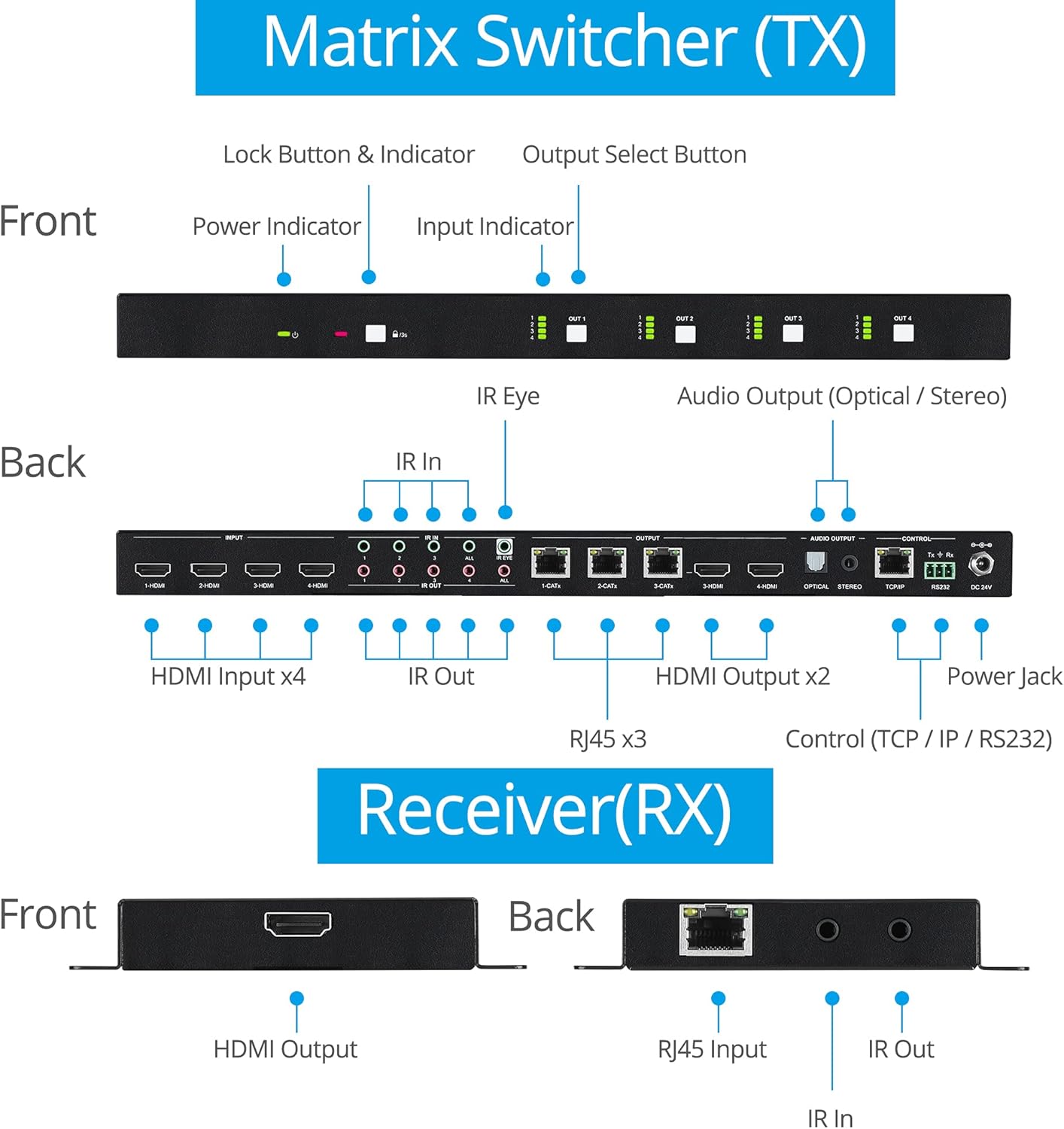

- Push front panel buttons

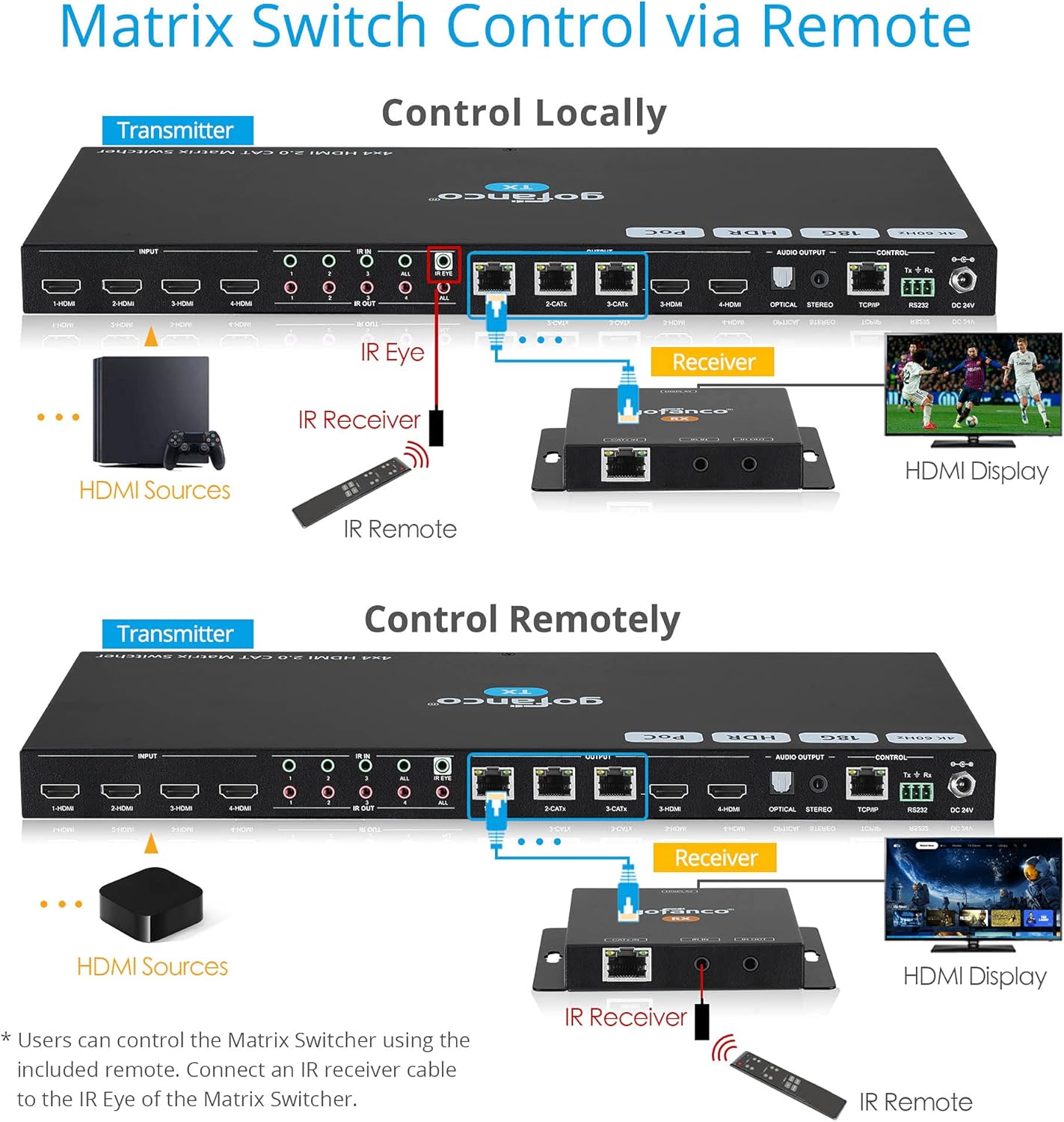

- Use included remote control
- Use built in GUI from a browser for convenient TCP/IP control. PC and Matrix switcher must be in the same network segment.
- Connect a mouse and keybaord via RS-232 (Cable Included)
Package Contents
- 4x4 HDBaseT Matrix 4K
- IR Blaster cables (4)
- IR RX cables (4)
- IR remote control (2x AAA batteries required, not included)
- Power adapter
- RS-232 Cable
- Surface mount accessories & Housing rubber pads
- User’s guide
Matrix Screen Combinations and Topology
There is no limit to displaying what you want, where you want! At an instant!
From having the same contents on every display to having different contents on every display and everything in between; this HDMI Matrix switch is able to quickly give you any desired combination of screen contents.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Matrix42-HD20 | PRO-Matrix44-SC | Matrix44-HDBT | Matrix44-HD20 | Matrix88-HDBT | Matrix88 | |
| Input x Output | 4x2 | 4x4 | 4x4 | 4x4 | 8x8 | 8x8 |
| Max Resolution | 4K @60Hz 4:4:4 | 4K @60Hz 4:4:4 | 4K @60Hz 4:2:0 | 4K @60Hz 4:4:4 | HDMI: 4K @60Hz 4:4:4 / HDBaseT: 4K @60Hz 4:2:0 | 1080p @60Hz |
| HDMI/HDCP | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.4 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.3 / HDCP 1.4 |
| Extender | No | No | 4K @60Hz (4:2:0) & 4K @30Hz up to 130ft (40m), 1080p/3D up to 230ft (70m) | No | HDBaseT: 4K @60Hz (4:2:0) or 4K @30Hz up to 130ft (40m), 1080p/3D up to 230ft (70m) / HDMI: 26ft (8m) | No |
| Mixed Resolution Output | 4K & 1080p | 4K & 1080p | None | None | None | None |
| Switch Methods | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4* | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 Control / Web GUI |
| Bandwidth | 18 Gbps | 18 Gbps | 10.2 Gbps | 18 Gbps | 18 Gbps | 10.2 Gbps |
| HDR | Yes | Yes | No | Yes | Yes (HDMI Out Only) | No |
| RS-232 Control | Yes | Yes | Yes | Yes | Yes | Yes |
| EDID | Yes | Yes | Yes | Yes | Yes | Yes |
